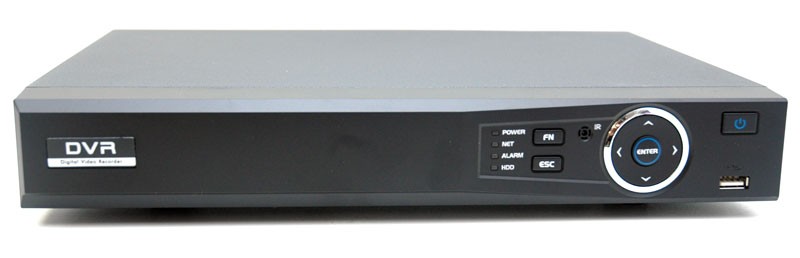

16 Channel Security DVR, H.264, Mini Professional

The major difference between our Mini Professional Series and the Business Series is there are no Alarm inputs on the Mini Professional Series. There are RS485 inputs for PTZ cameras, and VGA/BNC/HDMI video outputs and you can of course connect remotely from a PC or smart phone to view your cameras. Otherwise they are very similar DVRs.

Our Mini Professional Series DVR features embedded Linux OS, remote monitoring from anywhere in the world, audio recording and H.264 compression. This is NOT a PC based DVR which is subject to viruses and hacking. This is a standalone unit built for only one purpose - the best quality video surveillance in the world.

The Mini Professional Series DVR is the state-of-the-art in digital surveillance technology. This DVR features professional grade components and is manufactured to industrial standards. Its advanced functionality makes this one of the best standalone systems on the market today.

This unit is all about versatility. With VGA and BNC Video outputs, you can operate several different monitors simultaneously. Hook up a big screen TV with ease.

The Mini Professional Series utilizes H.264 hardware compression to bring you great quality video while maximizing your hard disk storage capacity. This DVR brings you the maximum in recording versatility by being able to record Real Time at CIF resolution on all channels at 30fps or 7.5fps at D1 resolution on any or all channels you choose. This allows you to capture a higher level of detail for a cash register, license plate, or anywhere that demands the highest video resolution available.

The Mini Professional Series DVR is amazingly simple to setup and operate. An intuitive mouse-driven interface provides very simple point-and-click control over all functions and settings. In addition, the unit also includes an IR remote control. Up to 16 channels can be played back at the same time at the DVR, and 4 channels can be played back via the web interface or client software.

The built-in Web server allows you to perform most every function of the DVR remotely with Internet Explorer. Client software is also included to allow you to centrally monitor multiple Mini Professional Series units simultaneously. Two-way audio over the network or Internet is also standard. So, not only can you hear what is going on, you can interact. This DVR supports up to 10 simultaneous network or Internet users on both PC and Mac. With Dynamic DNS support, it is not necessary to have a static IP address on your network in order to remotely access this DVR. This saves you money, as most ISPs charge extra for a static IP address.

Having the ability to remotely view your system is great, but what if you are on the road and just can't monitor your system all the time. This is no problem with the Mini Professional Series DVRs highly flexible email capability. Just set up a standard POP email account and have the system email you anywhere based on any criteria you choose. Many of our customers have emails sent to their cell phone for real time alerts. You choose email triggers that you want, and the DVR does the rest.

This unit only supports one SATA hard disk drive, but with up to 2TB SATA hard drives available, this is no longer a limitation. Also, due to the compact form factor of this unit, it is not capable of supporting a DVD burner internally. However, video can be backed up to a USB thumb drive for safe keeping or in the event that you must give the footage to the police. Video can also be saved right on your PC for easy access. FTP backup and recording functionality ensures your video is safe even if the DVR is destroyed.

This system runs on a rock solid Linux embedded OS, with embedded web server, and digital signal processors to bring you the most powerful network-based digital video recorder available. This high end system will provide you with everything you need other than a monitor. If you tie the system into your network, you wont even need a monitor to view your DVR.

And don't forget that we provide support for every step of your installation project.

**We do our best to remotely assist our customers in configuring their computer network for remote DVR viewing. However, we cannot be responsible for complex network configurations or the performance of your internet connection. We recommend that you have a broadband connection such as a DSL or Cable modem, or faster. We do not recommend using Cellular data based network devices and dish internet at the location of your DVR, since these service providers block the DVR from accepting connections to view footage over the internet.

Spec Sheet
