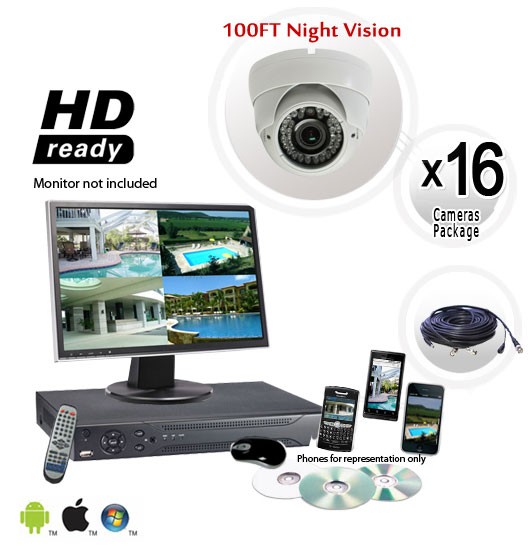

16 Dome Camera System 700TVL 100ft Night Vision - White

This system is the same as the 16 Dome Camera System 700TVL except for that it has white colored dome cameras. This 16 Vandal Proof Dome Camera System features 700TV Line Resolution Vandal Proof and Weather Proof Dome Cameras that have a manually adjustable 2.8-12mm Lens, and D1 resolution recording Digital Video Recorder with 1TB of hard disk space for 3 weeks of continuous video recording. The dome cameras in this system are fixed cameras that when mounted on a wall or ceiling, and with the lens adjusted for your desired viewing angle, will keep looking in that direction. They provide the highest resolution available currently in the CCTV Camera industry, that's 700 Lines of Resolution. The cameras feature a SONY CCD with a SONY Effio-E image processor to offer you the clearest image possible with a CCTV camera. You can rest assured that once mounted, the cameras are difficult to remove or manipulate by passersby, making them ideal for situations where you expect the cameras to be in reach of people. These cameras are made out of metal and are weather proof and water proof with a IP66 rating, meaning they will withstand heavy rain, snow, sleet, and hot or cold temperature. Don't worry about frigid or subzero temps with these cameras. They will last in almost all types of weather. They also offer 36 High Intensity infrared LEDs for night vision up to 100ft from the camera in total darkness, and farther in low lighting. When set to the widest viewing angle of 90 degrees at 2.8mm, you can expect to get a person's face up to 25ft away. At the 12mm mark which gives you a 20 degree viewing angle, you can ID a stranger's face up to 60ft away from the camera. Of course at any angle, the cameras can see up to infinity just like the human eye.

The DVR Recorder included in this system comes with a variety of features, all of which are very user friendly for configuring. With this unit you can fully customize recording schedules, resolutions of recording for each camera, and it features fully customizable motion detection areas as well. Using the on-screen display menu, you can easily set which areas of the camera you want motion detection, and which areas you do not - this is called motion masking. Motion masking is especially useful for environmental movement that may cause unwanted triggering of motion detection. On this DVR, viewing your recorded video is as easy as 123, it has a very user friendly interface, while not compromising advanced features. This DVR also features remote viewing, not only from a web-browser anywhere with an internet connection, but from most Smartphones and tablet devices as well. Imagine being able to pull up your cameras with the ease of opening an app on your phone. Email notification can be set as well, so the DVR can send you a email notification that motion occurred on a particular camera. If you want to get really complex you can even set the DVR to upload video to a remote NAS or FTP server for keeping live video backups.

Picture this: You are on the go, and you receive an email notification on your Smartphone stating the DVR detected motion in your garage. Immediately you pull up that camera on your Smartphone! It’s a false alarm, just a pesky rodent this time, but what about next time?

All necessary wiring and connectors you need are included in this system for you, and it is plug and play ready!

The mini professional series 16 Channel DVR in this system is compatible with the following devices using included software and mobile apps that are free of charge:

• iPhone
• iPad
• Android Phone
• Android Tablets
• Windows Phone
• Blackberry Phones 9800 Series and Higher
• Nokia Phones
• Windows PC
• Windows Internet Explorer
• Google Chrome Browser on PC
• Mac OSX v10.5.8 - 10.6.2 (via XQuartz Emulation)

Our DVRs include:

Avalonix 700 TVL Resolution Sony Effio-E Technology

Higher horizontal resolution over 650 TVL. Confirmed maximum resolution to achieve true 700 TV Lines of Resolution.

Digital Noise reduction (DNR) is a function that reduces the image noise to improve the image quality of the camera. In particular, it reduces the noise which is generated under low light conditions and other high-gain states. The Effio-E comes with a space-based Noise Reduction function.

Excellent color reproduction under variety of light sources [1,800K to 10,500K Lumes]

Preset OSD Menu: The "Effio-E" signal processor includes OSD (on-screen display) functions that allow camera settings to be made using the joystick or button controller located on the camera cable or inside the camera.

ATR/ATR-EX: The ATR (Adaptive Tone Reproduction) function provides gradation compensation to improve the contrast of subjects whose gradation has been lost in cases where, for instance, both low-luminance areas and high-luminance areas exist in the same picture. The ATR function improves the visibility of the entire picture by providing optimum gradation compensation for the image in one field based on the luminance information.

DVR Features:

• 16 Camera Digital Video Recorder
• 1 Audio input capable via optional CCTV microphone
• REAL TIME Live Display and Recording (480fps total) allows you to have full-motion fluid moving video
• H.264 hardware codec for the best video image quality in the industry in its price range
• 480 fps recording at CIF Resolution (350x240 pixels) and 120fps recording at D1 Resolution (704x480 pixels)
• Simultaneous 16 Camera Playback of recorded or live video on monitor
• Simultaneous 16 Camera Playback of live video and 4 camera recorded video playback over internet on the PC
• Includes 1TB Hard Drive for up to 3 weeks of continuous video recording
• Selectable recording video quality levels
• Multiplex operation allows up to 4 tasks to be done on the DVR simultaneously
• Allows user to view live video, playback recorded video, record video, backup video, and access over network all at the same time without ever stopping recording
• Easy to use DVR menu for operation of the DVR featuring point and click navigation (mouse included)
• Independent camera settings customizable for each camera:
  • Video Loss Alarm
  • Video Based Motion Detection - records video and audio when there is motion in the picture
  • Trigger of built-in buzzer alarm, log events, and inform via email
  • Email based notification on motion trigger with or without picture
• Full feature set of controls available when remotely viewing over internet through Internet Explorer:
  • View Live Video for all 16 Cameras in one grid, or choose to view each camera in full screen mode
  • 16 Camera Playback - plays recorded video of all 16 cameras on one screen by selecting time of video or logged motion detect events
  • Convenient timeline feature during playback of recorded video makes it very easy to surf through recorded video on the DVR
  • Backup video to a USB flash drive, external USB DVD Burner, or over internet on to your PC as an AVI file
  • Bandwidth Management for slow internet connections so smaller images are displayed faster
  • Supports up to 10 remote viewers at the same time
• Included software allows monitoring and control of up to 32 DVRs from one location
• Two video output options:
  • VGA output at 1024x768 or 1280x1024 Resolution to connect any computer VGA monitor
  • BNC / RCA video output to connect regular TV
• USB port for video backup to a USB flash drive
• Hand Held Remote Control and Mouse Included for easy operation

Camera Features:

• Vandal Proof Outdoor Dome Cameras
• White Colored Cameras
• SONY CCD Color Camera Sensor
• SONY Effio-E Singal Processor
• Day and Night Cameras
• Weatherproof Cameras
• 36 Infrared LEDs - 100ft Night Vision
• 1/3" Sony CCD Image Sensor provides crisp 700 TV Lines of Resolution
• 0 Lux Rating with Infrared On
• 0.001 Lux with Infrared Off so you can see in color in very dim environments
• Adaptive Tone Reproduction (ATR)
• Digital Noise Reduction (DNR)
• IP66 Weatherproof rating to withstand heavy rain, snow, and cold or hot temperatures
• Manual zoom lens adjustable 2.8 to 12mm Zoom Lens
• Easily mount and position the camera at virtually any angle
• Camera Cable has joystick to control the On Screen Display Menu to set various camera settings
• BNC Video Output for Video

What's Included?

• 16 - 700TVL Vandal Proof Dome Security Camera - White Colored
• 1 - 16 Channel DVR with 1TB HDD
• 1 - 12 Volt DC Power Supply with 16 camera output
• 8 - 50 ft Plug and Play Power/Video Siamese Cable
• 8 - 100 ft Plug and Play Power/Video Siamese Cable
