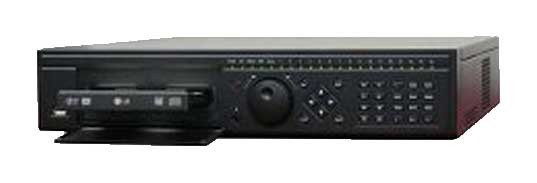

4 Channel H.264 Security DVR, High Capacity Series

All of our security Digital Video Recorders feature an embedded Linux Operating System that allows for rock solid stability and operation, remote monitoring from anywhere in the world using a smartphone or computer, and H.264 video compression for the best possible video recording quality. This is NOT a PC based DVR which is subject to viruses and hacking. This is a standalone DVR unit built for only one purpose - the best quality CCTV video recording in the world. Although you will need a monitor during the initial install of the system, once the install is complete the monitor can be removed, as it is not required for normal operation of the system. If you tie the system into your network, you will not even need a monitor to view your DVR.

Our DVRs are state-of-the-art in digital surveillance technology. They are made of professional grade components and are manufactured to industrial standards to last for a long time. You will not find this quality at a consumer electronics store or from supposed brand names at Costco/BJ's/Samsclub or Amazon. Their advanced functionality in recording options and quality, video playback and search, storage options with backup, and remote viewing over the internet, make them one of the best standalone systems on the market today.

Video Input and Output
This unit is all about versatility. With HDMI, VGA and BNC Video outputs, you can output a grid of 4 cameras to 3 different monitors simultaneously. And, with the included Matrix output, you can also run a separate monitor that can be programmed to display a completely different series of cameras! Need to output a single camera to its own monitor? This is not a problem with our built-in loop connectors. Every channel has its own BNC output that can be used to provide video to a monitor, a multiplexer, or anywhere you need it!

Recording Quality
This is the highest quality 4 Camera Standalone DVR available anywhere in the world. This Professional High Capacity DVR is able to record at CIF or D1 resolution in Real Time on every channel. That means you can record at 704 x 480 pixels at 30 fps (frames per second) on every channel simultaneously. It is also able to hold up to 8 Hard Drives inside for a total of 32TB of storage when configured without a burner, making it the highest capacity Standalone Security DVR on the market today in its price range. Match this capability against any other DVR on the market today and you will see why this is truly a High Capacity DVR! It is ideal for use in casinos, for license plate capture, facial detection or anywhere that high resolution images are important.

Ease of use and playback
All of our DVRs are amazingly simple to setup and operate. An intuitive mouse-driven interface provides very simple point-and-click control over all functions and settings. In addition, the unit also includes a handheld remote control. The jog shuttle or mouse can be used to easily fast forward, rewind, and advance frame by frame. Up to 4 Cameras can be played back at the same time at the DVR, and 4 channels can be played back via the web interface or client software for the computer.

Remote Viewing
The built-in Web server allows you to perform almost every function of the DVR remotely with Internet Explorer or the Remote Client Software. The Remote Client Software is included for Free! It allows you to control and monitor multiple DVRs simultaneously from a central location. Two-way audio over the network or Internet is also standard on our Professional Series DVRs. So, not only can you hear what is going on, you can interact by attaching a microphone and speaker to the DVR. This DVR supports up to 10 simultaneous network or Internet users. With Dynamic DNS support, it is not necessary to have a static IP address on your network in order to remotely access this DVR. This saves you money, as most internet service providers charge extra for a static IP address.

Motion or Alarm based notification
Having the ability to remotely view your system is great, but what if you are on the road and just can't monitor your system all the time. This is no problem with the Professional Series DVRs email capability and push notification on the smartphone. For email notification, just set up a standard POP email account like Gmail or Yahoo and have the DVR system email you based on motion detection on any or all cameras you choose. The push notification feature available with the HD remote view app allows you to receive alerts from the DVR to your iPhone, iPad, or Google Android Phone or Tablet.

Storage Capacity
Storage capacity will never be a problem with this Professional High Capacity Series DVR. Up to 8 SATA hard disk drives can be installed if no burner is mounted, and up to 6 SATA drives can be installed if you choose to install a DVD Burner. For advanced users there is user selectable RAID hard disk management that mirrors hard drives to keep your data safe from hard drive failures. There is also the FTP backup and recording functionality which allows you to do live or delayed backups of your video to a remote computer or server.

Video Backup
All of our DVRs come with a USB 2.0 port for easy off-load of recorded video to a USB flash drive or external USB hard drive. With the high capacity DVR's optional DVD Burner, you can also backup recorded video to DVD-R discs. Thirdly, all of our DVRs have the ability to download recorded video over the internet directly from the web interface or client software to your computer.

PTZ Control
Our DVRs are compatible with multiple PTZ protocols on the market including Pelco-D and Pelco-P so you can use your existing cameras with this DVR. The easy 3D mouse operated PTZ control allows you to control any PTZ camera from the DVR. Just click on the screen and drag your mouse around. The PTZ camera follows the mouse pointer so you can smoothly and accurately follow any objects of interest. Best of all, you can control your PTZ cameras remotely over the internet using your phone or computer.

2 Year Warranty
This unit comes with a 2 Year Warranty against any manufacturing defects. We service our items ourselves, so rest assured the turn around time will always be as quick as possible. We also offer loaner DVR units in case you need one.

Lastly, we provide support for every step of your installation project.
