Details

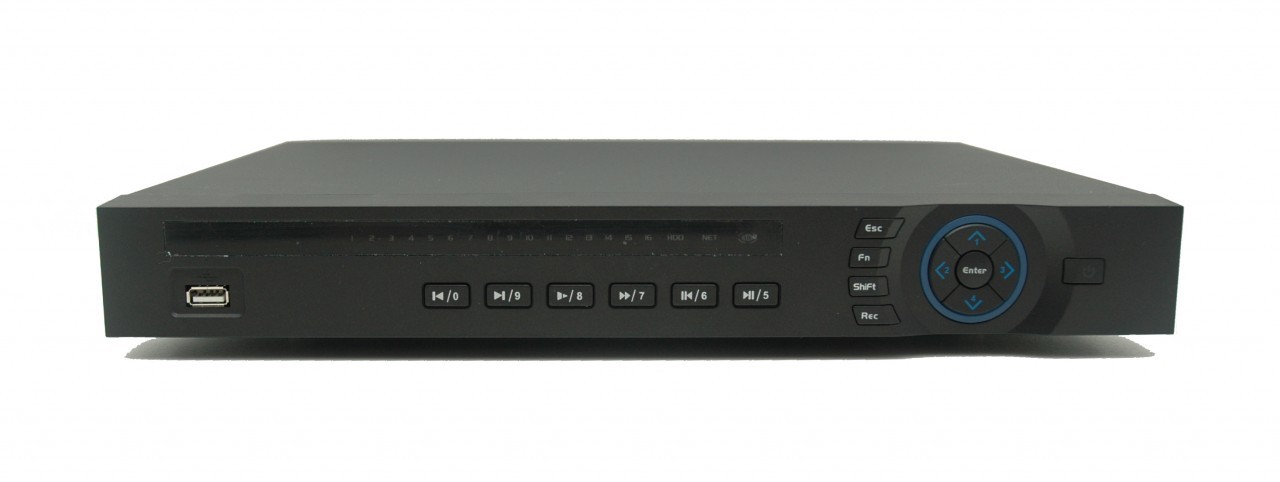

The DVRP04HD is the newest addition to our 4 Camera DVR Recorder line of products. This 4 Channel DVR Recorder allows for real-time 30fps per camera recording/playback at D1 resolution on 2 Channels and 30fps recording/playback at CIF resolution for 2 Channels. It also support 15fps recording at D1 on all Channels. This high resolution and frame rate video quality is unmatched by any other Professional DVR in this price range. As an added bonus, you can also record audio on all 4 Channels. Picture clarity of the recorded surveillance footage is amazingly clear thanks to the latest generation of H.264 video compression that offers unsurpassed video quality while taking up little hard drive space. With a 1TB Hard Drive (not included) you can record at least 4 weeks of continuous video/audio for four cameras at D1 resolution. Of course you can record even longer if you use scheduled based recording or motion activated recording. The DVR comes with the motion activated recording feature, where it watches each camera for changes in the video and starts recording when it senses motion. You can select the sensitivity of motion using the DVR's easy to use interface.
Features:
- 4 Camera Video and 4 Audio Recorder
- H.264 hardware codec for the best video image quality in the industry its price range
- Real-time Live Display/Record allows you to have full-motion fluid moving video
- Supports remote view over internet using your smart phone, Windows PC, or Apple Computer
- Supports iPhone, iPad, Android phones and tablets
- Comes with Apps and Computer Software free of charge for remote viewing
- Selectable recording video quality levels
- Supports 1 internal SATA hard drive up to 4TB in capacity
- Multiplex operation allows you to carry out multiple tasks on the DVR simultaneously
- Allows user to view live video, playback recorded video, record video, backup video, and access over network all at the same time without ever stopping recording
- Authorization management so only viewer with a username and password can view video
- Supports multiple user accounts with selectable authorization levels
- Easy to use DVR menu featuring point and click navigation (mouse included)
- Independent camera settings customizable for each camera:
- Video Loss Alarm
- Motion Detection
- Alarm Settings including trigger of built-in buzzer alarm, log events, and inform via text email
- Full feature set of controls (all free of charge) when remotely viewing over internet through Internet Explorer or with the included viewing software for Windows PC:
- View Live Video from all 4 cameras in a grid or each camera individually
- Playback recorded video from all 4 cameras in a grid or each camera individually by selecting time of video or logged events of motion detection
- Backup video segments over internet on to PC or to a flash drive
- Bandwidth Management for slow internet connections so smaller images are displayed faster
- Supports up to 10 remote viewers at the same time
- Email alert when motion is sensed or alarm is triggered (text based email)
- Included software allows control of multiple DVRs from one location
- Dynamic IP address supported thanks to built in DDNS support
- Video Output:
- High Definition HDMI Output at 1080p
- VGA output at 1024x768 or 1280x1024 Resolution to connect any computer VGA monitor
- BNC video output to connect regular TV (switch between the two)
- USB port for easy video backup to a USB flash drive
- Selectable automatic video overwrite function lets you decide if you want to record over oldest video first when hard drive is filled up
- Hand Held Remote Control Included
Specifications:
Compression format | Standard H.264 Baseline | ||||
OS | Embedded Linux | ||||
Video | Input | BNC×4 | |||
Output | BNC × 1; VGA ×1 | ||||
Record Resolution | 352×240/704×480 (NTSC) | ||||
Frame Rate | Display | 120fps (D1) | |||
Record | 2 CH at D1 + 2 CH at CIF (all 30fps) or 4 CH at D1 15fps |
||||
Audio | Input | BNC×4 | |||
Output | BNC×1 | ||||
Recording Mode | Manual, time, motion triggered, sensor | ||||
Display |
1 HDMI, 1 VGA, 1 TV BNC 1920×1080, 1280×1024, 1280×720, 1024×768 |
||||
Display Overlay | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||||
Pentaplex operation | preview, record, playback, backup, remote access | ||||
Network Interface | RJ45 Gigabit Ethernet Port | ||||
Alarm Input | 4 | ||||
Alarm Output | 1 | ||||
RS232 | 1 Port for POS or PC communication | ||||
PTZ | YES RS485 | ||||
IR controller | YES remote control included | ||||
Communication Interface | USB 2.0 x 2 | ||||
HDD | SATA x1 up to 4TB | ||||
Power Supply | 12V DC | ||||
Average Operating Power | Less than 30W without HDD |
Additional Information
Warranty | 1 Year |
---|---|
Return Policy | 30 Days Return Policy |
