Details

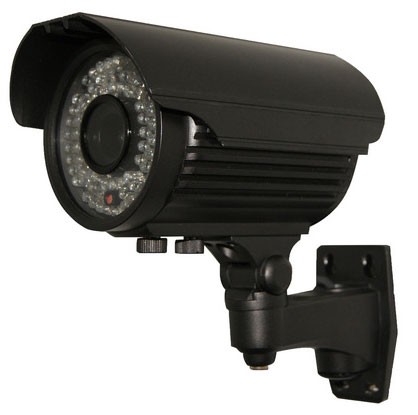

The 3860AVA is a great economical yet high quality security camera for applications where you need to see up to 130ft at night. The manual zoom lens lets you adjust the camera to the desired zoom length by hand and focus on objects that are important to you. The 3860AVA features a 2.8-12mm Lens that is perfect for focusing on distances from 2ft away up to 60ft away to view facial detail. You can adjust the camera from a viewing angle of 90 degrees to 20 degrees. Best of All it features 600 Lines of Color Resolution, the highest in the CCTV industry. This bullet camera also has a real genuine Color SONY image sensor to give you high resolution video. This camera also has a on screen display menu controllable with the button located on the cord next to the camera to change several camera settings.
Features:
- Weatherproof Security Camera for outdoor or indoor use
- 1/3" Sony CCD Image Sensor - 600 TVL
- 42 High Intensity Infrared LEDs for 130ft of infrared night vision
- 0 Lux Rating when Infrared On
- 0.001 Lux Rating when Infrared Off let's you see in color even with low lighting conditions
- Bracket with pass through cabling to protect cabling from vandalism
- IP66 Weatherproof rating to withstand rain, snow, and extreme cold or hot temperatures
- 2.8-12mm Manual Zoom Lens to set the camera to the desired zoom length at time of installation
- 90 to 20 degree viewing angle manually adjustable
- Wall Mount Bracket Design - mounts directly to exterior wall
- For professionals: Advanced image features controllable via On Screen Display Menu built-in to camera
- DWDR
- Digital Noise Reduction (see image below for example)
- Dark Colored Camera
- BNC Video Output
- DC 12V power supply included
Includes:
- 1x 600TV Line Security Camera with built-in mounting bracket
- 1x Allen wrench to adjust camera bracket
- 3x Mounting screws
- 1x 12V Power Supply
Avalonix 600 TVL Resolution Sony CCD |
| Higher horizontal resolution over 600 TVL. Confirmed maximum resolution to achieve true 600 TV Lines of Resolution. |
 |
| Digital Noise reduction (DNR) is a function that reduces the image noise to improve the image quality of the camera. In particular, it reduces the noise which is generated under low light conditions and other high-gain states. |
 |
| Excellent color reproduction under variety of light sources [1,800K to 10,500K Lumes] |
Specifications:
| Image Sensor | 1/3" SONY ExView HAD CCD II |
| Horizontal Resolution | 600 TV Lines |
| Pixels | NTSC:768(H)×494(V) |
| Usable Illumination | Color: 0.001 Lux Black and White: 0 Lux with Infrared On |
| TV System | NTSC |
| IR LED | 42 Infrared LEDs |
| IR Distance | Up To 130ft or 40 meters |
| Lens | 2.8-12mm Manually Adjustable Zoom Lens |
| Sync System | Internal |
| S/N Ratio | ≥54dB (AGC OFF) |
| Gamma Correction | 0.45 |
| Video Out | Composite Signal BNC Output (1.0Vp-p, 75Ω) |
| Electronic Shutter Time | Auto: NTSC 1/60-1/100,000Sec |
| Operation Temperature | -30°C to + 45 °C, Relative Humidity 95% Max |
| Storage Temperature | -30°C to + 60 °C, Relative Humidity 95% Max |
| White Balance | Auto |
| Power Source | DC12V 850mA |
| Dimensions | 10 x 4.33 x 4.14 inches (width x height x depth) approximate |
| Weight | 3.53 lbs approximate |
Additional Information
| Warranty | 1 Year |
|---|---|
| Return Policy | 30 Days Return Policy |
