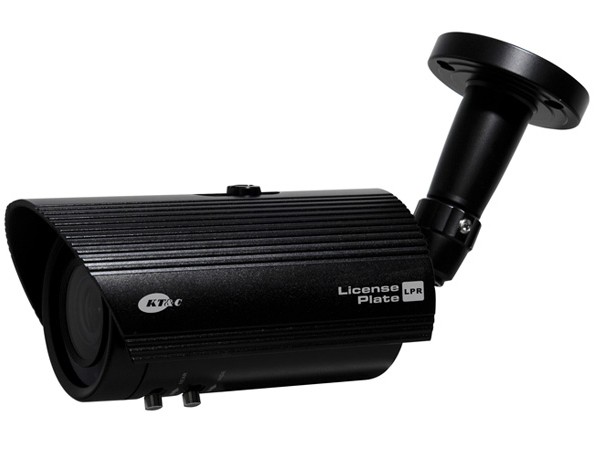

License Plate Camera, Bullet Style

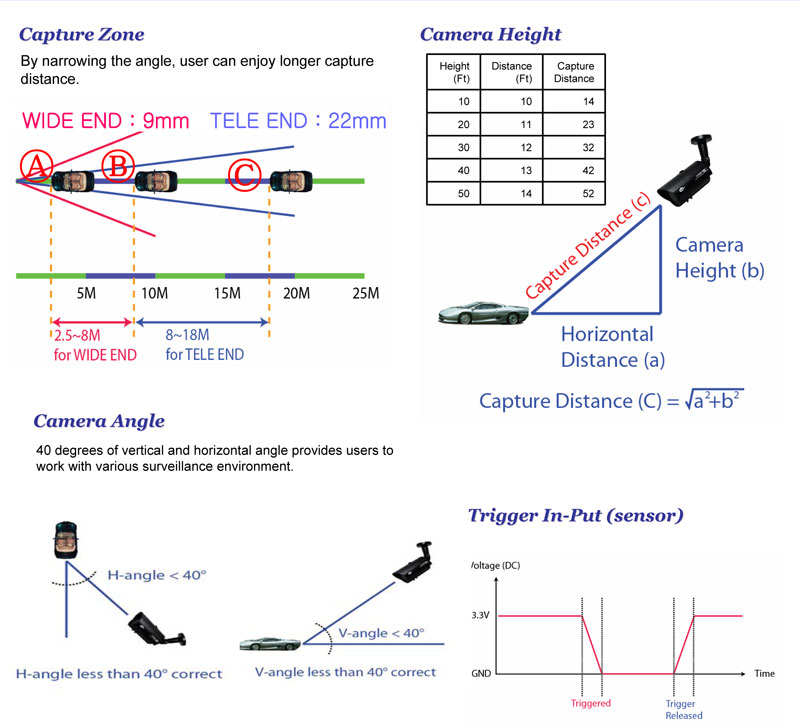

This license plate capture camera is a bullet style camera for situations where you want a sleek and stylish looking black camera with the ability to capture at angles up to 40 degrees. It is designed to capture video of license plates with exceptional video quality up to 60ft away. With 600 TVL resolution and a black and white CCD, and an advanced special filter with infrared night vision technology for sight in complete darkness, this CCTV Camera is optimized for license plate capture. It provides high contrast video of license plates driving by from vehicles moving up to 35 mph. By adjusting the manual zoom 9-2mm lens, you can capture plates at a minimum of 8ft away when set at the 9mm mark, and up to 60ft away when the lens is set to 22mm. Of course you can also set the lens at settings in between the above since the camera zoom allows fluid adjustment between 9 and 22mm. When using this camera, please keep in mind that the horizontal and vertical angle between the plate and camera lens should be less than 40 degrees.

Features:

• 1/3” Sony Super HAD II CCD
• 600 TVL Resolution
• Special filter and Infrared LED night vision provides maximum clearness under headlight glare
• Plate capture on vehicles moving up to 35mph
• Capture distance from 8ft to 60ft depending on how varifocal lens is set
• 9-22mm Manual Zoom Lens
• Weatherproof IP66 Rating for all weather use in rain or snow
• Supports 12V DC or 24V AC power input

Includes:

• 1x Camera
• 1x 12V power supply

Specifications:

• Image Device - 1/3" SONY Super HAD CCD
• Scanning System - 2:1 Interlace
• Scanning Frequency:
  • NTSC : 15.734 KHz(H), 59.94 Hz(V)
• H. Resolution - 600 TVL (Only B/W)
• Total Pixels:
  • NTSC : 811(H) x 508(V)
• Effective Pixels:
  • NTSC : 768(H) x 494(V)
• S/N Ratio - More than 50dB (AGC Off)
• Min. Illumination - 0 Lux ( IR LED On)
• Sync. System - Internal
• Video Output - 1.0 Vp-p Composite (75Ω)
• Lens - 9.0 ~ 22.0 mm Vari-focal Lens
• OSD - Built-in on camera cable
• IR LED - 850nm, 20ea, Up to 30m
• IR LED Operation - On : 1Lux, Off : 3Lux
• IP Rating - IP66
• Operating Temperature - 14?F ~ 122?F (-10?C ~ +50?C)
• Storage Temperature - -4?F ~ 140?F (-20?C ~ +60?C)
• Humidity - Less than 80%
• Power Comsumption:
  • DC12V / AC24V : AC24V ±10% Max 6.7W, DC12V ±10% Max 550mA
• Dimensions - (mm) 82.0(W) x 79.3(H) x 130.0(D)
• Weight Approx. - 1000 g
• Options - DC12V / AC24V Dual Voltage
