Mini Camera with Pinhole Lens

This is the wide angle version of our popular Pinhole Board Camera. It features the same 1/4" Sony CCD image sensor with 380 lines of resolution and requires 1 lux minimum illumination. The only difference being that this camera has a wide angle 3.7 mm Pinhole lens that provides a 67 degree angle of view. Pinhole lens are cone shaped lens that are a little longer than our flat lens, but they are great for applications where you need the camera to be placed in a small opening and get a wide angle view. For example, you can use these behind pinhole size openings in walls or inside household electronics like alarm clocks and smoke detectors. We use this same camera in many of our custom made hidden projects. Now we're offering this to our customers who have the Do-it-Yourself spirit.

You will need some lighting to be able to see in the room with these cameras. These pinhole lens board cameras like most of our cameras connect to any recorder or TV Monitor. Each camera is only 1 inch in length and width, and less than 1/2 inch high. The cameras have a BNC video output and a 12V power jack on the pigtail wire that comes with these cameras. You can also use one of our 12V battery packs with these cameras. If you use your own battery pack make sure it is 12V otherwise the camera will get fried and void your warranty.

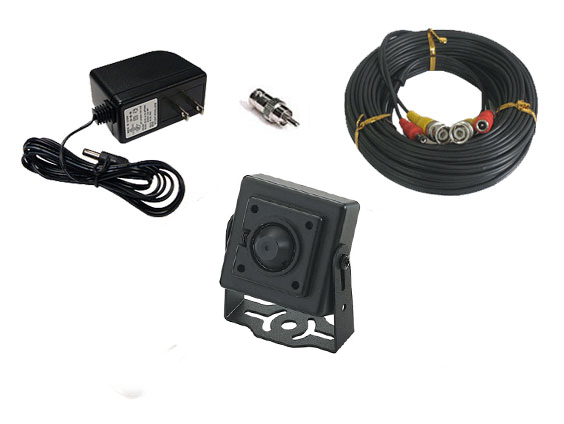

Includes 1 x Board Camera with Pinhole Lens, 1 x RCA male to BNC female connector, video/power pigtail for board camera, 12V 500mA power supply and 25 ft of video/power all-in-one coax cable!
