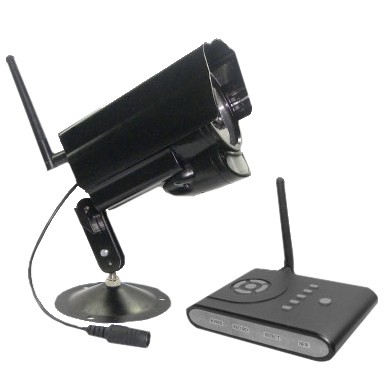

Outdoor Wireless Camera with DVR Receiver

Waterproof Security Camera and DVR Create the Ultimate Surveillance Kit
This DVR and camera combination work together to create a surveillance system with two-way talk, motion and body heat activated recording, as well as scheduled recording. Put the camera in front of your home and view guests, or even speak with them as they arrive to ensure security. The camera will even detect motion or body heat and begin recording day or night, with nightvision up to 50 feet. All footage is transmitted back to a computer or TV screen where it can be viewed in quad mode for a split screen view from up to four cameras attached to the DVR.  Note: SD Card not included.

You can purchase up to 4 of these wireless camera / receiver sets and use them in one location. You can either transmit video from one camera to its own receiver that comes in this package, or use 4 cameras with one receiver to record on to one SD card. Please note cameras are sold only in combination with the receiver.

Product Overview:

• Waterproof security camera with nightvision allows for day and night surveillance
• Camera with two-way talk doubles as a video intercom system for increased property security
• Quad DVR displays up to four surveillance feeds on a single screen
• Uses motion and body heat detection, and scheduled recording to save memory
• Add-On Wireless Cameras Here

Key Benefits:

• Use the system as an intercom to communicate on camera
• Nightvision up to 50 feet away with this waterproof security camera
• Only capture the action when motion or body heat is detected
• Connect DVR receiver with up to four cameras for quad view surveillance
• Footage includes time and date stamp for easy browsing and event locating
• Scheduled recording for reliable recording anytime
• Overwriting option lets you set up the camera and not worry about running out of memory as the new footage gets recorded over the old
• Waterproof security camera is safe for outdoor use and can stand up to harsh weather

Features:

• Nightvision up to 50 feet with 0 LUX level and 24 IR LEDs
• Microphone and speaker in the camera and receiver allows for two way communication
• PIR sensor on camera monitors for body heat
• Receiver scans the live feed for motion activated recording
• System uses digital signals to avoid interference
• Quad function to display up to four channels with optional four channel loop
• Date/time stamp
• Scheduled recording option
• Overwriting option
• Water proof camera design

Popular Uses:

• Home surveillance system
• Business surveillance - supports up to four cameras
• Intercom system - two way talking between the waterproof security camera and the receiver
• Quad surveillance system

Includes:

• 1x Receiver
• 1x Camera
• 2x antenna
• 2x Power adapters
• 1x AV cable
• 1x Bracket
• 1x User manual

Specifications:

• General:

  • Frequency ISM: 2400 ~ 2483.5 MHz
  • Modulation: GFSK
  • Antenna: omni 3dBi
  • Transmission distance: 100m
  • Operating temperature: -10°C - 60°C
  • Operating humidity: 20% - 80%
• Receiver:

  • Rx sensitivity: -81 dBm (typical)
  • Video resolution: 640 x 480 (VGA), 320 x 240 (QVGA), ZOOM
  • Video signal output: NTSC/PAL composite, 1V pk-pk, 75ohm (with audio)
  • Image input channel: 4 wireless channels
  • Video mode: M-JPEG AVI
  • Video frame rate: 9~25fps
  • Photo format: JPEG
  • Memory extension support: 16 Gb SD card
  • Power supply: AC 100 - 240V DC 12V 500mA
  • Power consume: max 160mA
  • Dimensions: 4.7"x3.3"x0.9"
  • Net weight: 190g (including adapter)
  • Record overwrite: optional
  • Recording mode: Video recording and photo shooting
  • Detection sensitivity: max 5 meters
  • Record time display: available
  • Video system: NTSC/PAL adjustable
  • Startup mode of recording video: Motion detection, scheduled, and manual
  • Video file size: approx. 10M/min
  • Playback: normal, fast forward, fast backward, and pause
• Camera:

  • Sensor: CMOS 1/4"
  • Resolution: 640 x 480 pixels
  • View angle: 66°
  • Waterproof: IPX2
  • Nightvision range: 50 feet
  • Transmit output power: 100mW
  • Power supply: AC 100 - 240V DC 12V 500mA
  • Power consume: max 270mA
  • Dimensions: 4"x3"x3.2"
  • Net weight: 555g (including adapter)
