Details

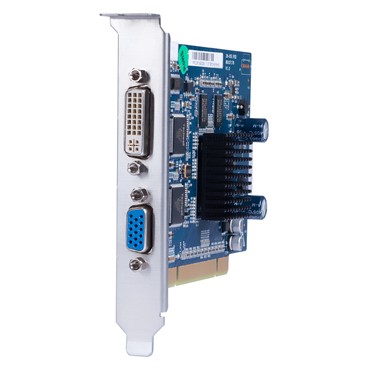

This is the new version of our famous Digicam PC DVR Card. This 8 Channel DVR Card supports Full D1 video recording on all 8 Cameras and 8 Channels of audio as well. This is one PCI Card that fits in to your windows PC motherboard, and supports Windows 7 64 bit as well, in addition to Windows XP, and Windows 7 32bit. If you are looking for a quality professional PC DVR Card solution look no further. Its remote viewing software for Windows PC, and compatibility with 3rd party mobile apps makes it an ideal choice for users building their own PC DVR System.
Please be sure to save the serial key you get with your board as this units comes with licensed software.
This DVR Card is also compatible with the following 3rd party remote view apps:
For the iPhone:
- mobileclient
- pcdvrviewer
For the Android:
- netdvrviewer
Features:
- One PCI card that supports up to 8 cameras
- You can add up to 8 cards to one PC to get a total of 64 channels
- Hardware Video Compression - utilizes little CPU resources from your PC
- Preview resolution D1, CIF, QCIF
- Encoding resolution: D1, Half D1, 2CIF, CIF, QCIF
- Compressing video/audio in real-time, no frame loss
- FULL D1 Video Compression - Total 240fps or max 30fps per channel
- Allows user to adjust image quality, bitrate, and fps
- Allows user to adjust hue, contrast, saturation, brightness
- Supports video based motion detection, video loss detection, and motion camera masking
- Supports 64 channel decoding for single client-end
- Windows 7 64 Bit compatible
Minimum PC requirements:
- PCI 32-bit slot on motherboard
- Intel CPU - P4 3GHz or higher
- AMD CPU compatible also
- Not compatible with via chipsets, or Intel i3, i5, i7 processors and associated chipsets
- Operating system requirements: Windows XP/2000 32-bit, Windows Vista 32-bit, or Windows 7 32-bit
- 1GB RAM
- 250GB Hard Drive Space for Operating System
- Second Hard Drive for Video Storage Recommended
- Nvidia or ATI Radeon Graphics Card with 256MB of Memory or more
Specifications:
|
Video |
||
|
Input |
8 Channel BNC (1.0Vp-p 75Ω) |
|
|
Preview Resolution |
D1 (4CIF)/ CIF / QCIF, All Realtime |
|
|
Compression |
H.264 |
|
|
Encoding Resolution |
4CIF/D1 (704×480) |
|
|
Encoding Speed |
Main Stream: D1 (4CIF)/Half-D1/2CIF/CIF/QCIF all up to 30fps per channel |
|
|
Extra Stream: CIF/QCIF up to 30 fps per channel |
||
|
Bit Rate |
32Kbps to 4Mbps |
|
|
RAW Stream |
Supported, Full-channels at 4CIF(D1)/CIF/QCIF |
|
|
Audio |
||
|
Input |
8 channel input via BNC (2.0Vp-p 1000Ω) |
|
|
Compression |
PCM (G.711) |
|
|
Sampling Rate |
16bit/8KHz |
|
|
Bit Rate |
64Kbps |
|
|
System Requirement |
||
|
Operating System |
Windows 2000/XP/2003/Vista/7, Linux |
|
|
CPU |
Intel or AMD |
|
|
Motherboard |
Based on Intel or AMD chipset, PCI slot |
|
|
Memory |
1GB or above |
|
|
Graphics |
AMD, NVIDIA, Intel graphics cards, memory 256MB or higher |
|
|
Other |
||
|
Power Consumption |
8W |
|
|
Dimension |
5.7 (L) x 3.7 (W) inches |
|
Additional Information
| Warranty | 1 Year |
|---|---|
| Return Policy | 30 Days Return Policy |
