Details

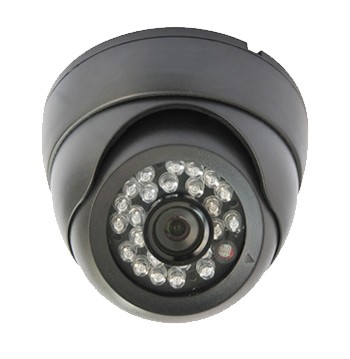

NOW 620TV Lines in Resolution. This vandal proof dome camera is perfect for places where the camera may be in reach of vandalizing intruders. The metal casing is high impact resistant, so it can withstand a blow from a bat. The 620 TV Line Resolution CCD provides excellent image quality during day and night, with facial clarity up to 30ft when used with a D1 DVR, and 60ft of night vision to see larger objects in complete darkness. The camera has a 3.6mm lens that provides a 80 degree angle of view.
Features:
- 620 TV Line CCD for crisp clear video
- 24 High Intensity infrared (IR) LEDs for Night Vision up to 60ft
- Fixed Lens 3.6mm for 80 degree angle of view
- Vandal Proof Housing
- IP66 Weahter Proof Rating for rain or snow, cold or warm temperatures
- Wall or Ceiling Mount capable
- 3 Axis Adjustment
Includes:
- 1x Dome Camera
- 1x 12V 500mA power supply for up to 50ft run
Specifications:
| Image Pick-up Device | 1/3" CCD |
| Effective Pixels | NTSC: 811 (H) X 508 (W) |
| Video Forma | NTSC / PAL |
| Horizontal Resolutin | 620 TV Lines |
| Minimum Illumination | 0 Lux (IR LED On) |
| Backlight Compensation | Auto |
| White Balance | Auto |
| Gain Control | Auto |
| Sync. | Internal/External Sync |
| S/N Ratio | >50db |
| Electronic Shutter | NTSC:1/50 -1/10,000Sec |
| Infrared Wavelength | 850nM |
| IR LED | 24 LED |
| IR LED Auto On/Off | Day / Night |
| Built-in Lens | Fixed 3.6mm |
| IR LED Distance | 60ft |
| Video Output | 1.0Vp-p 75Ω |
| Operation Temperature | 0-112 Degrees F |
| Power Supply | DC 12V 300mA |
| Dimensions | 98mm(D)×70mm(H) |
Additional Information
| Warranty | 1 Year |
|---|---|
| Return Policy | 30 Days Return Policy |
